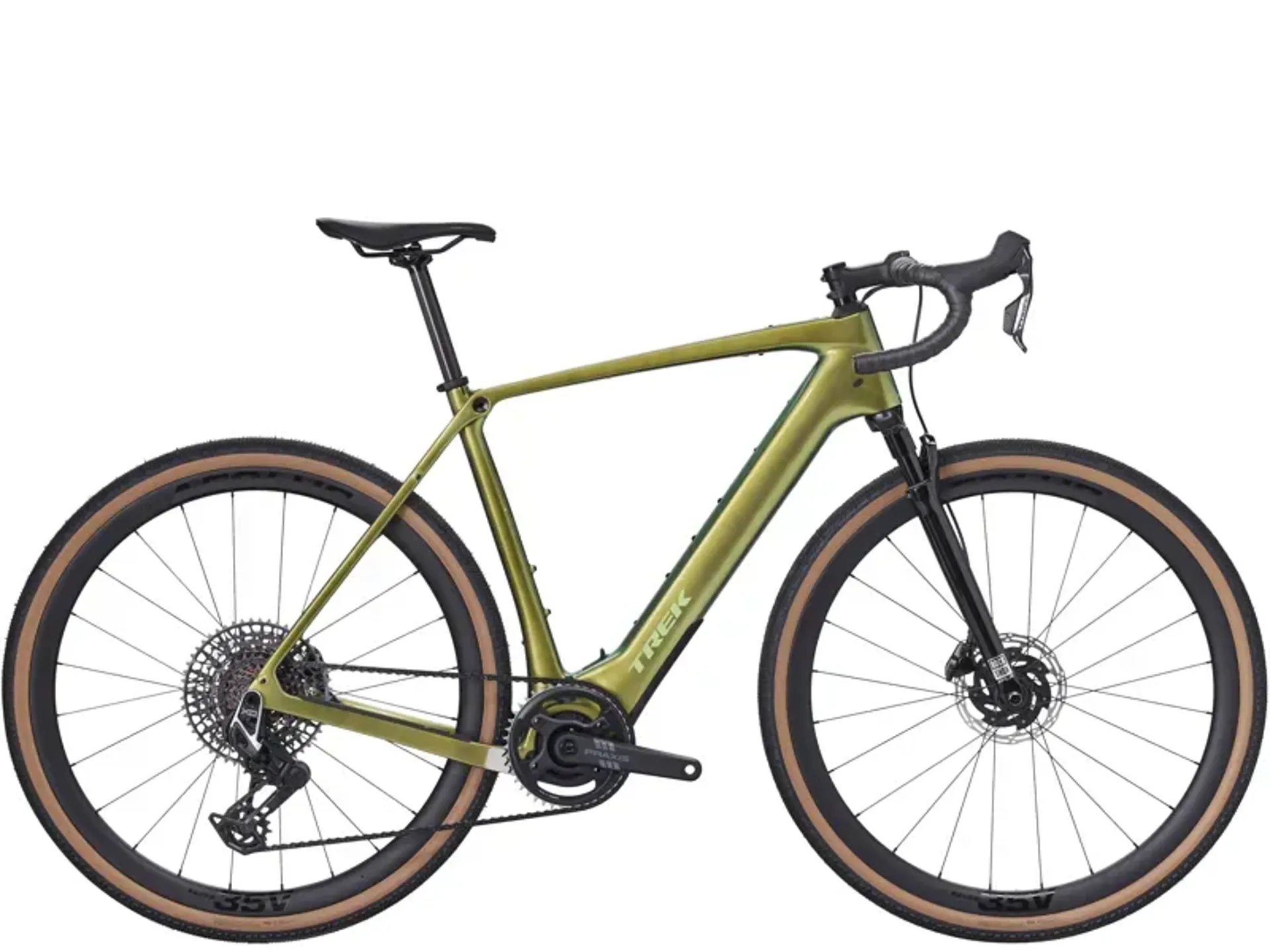

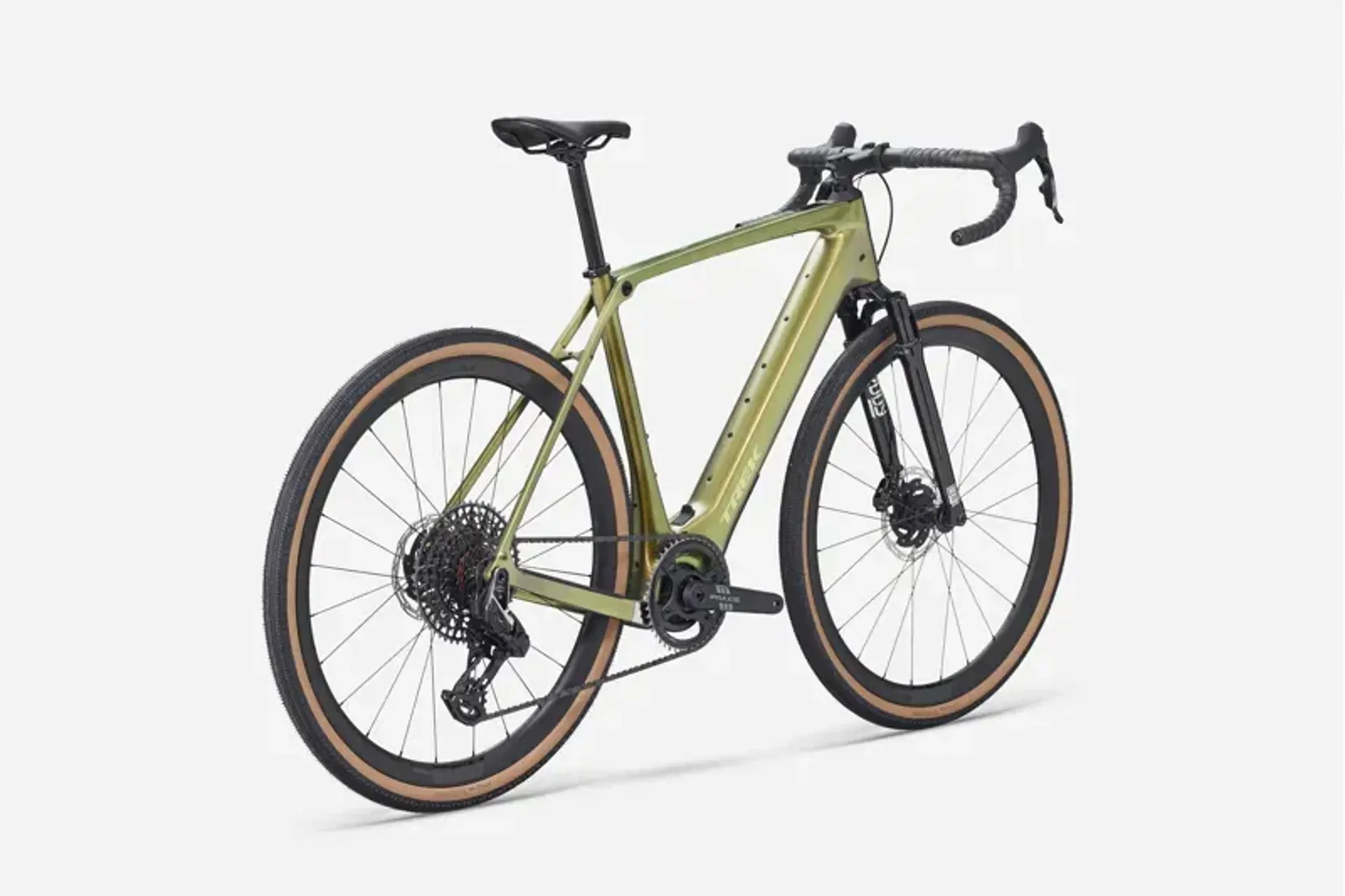

Trek Checkpoint+ SL 7 AXS Carbon Electric Gravel Bike in Chameleon Green

Season:2027

Brand:Trek

Code:57447GRN

The Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most wide-ranging adventures, featuring an OCLV carbon frame and a TQ HPR60 motor.

An OCLV carbon frame keeps the bike light, while a TQ HPR60 motor provides a smooth and quiet boost. A 40 mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. The SRAM Force AXS E1 12-speed drivetrain delivers smooth, wireless shifting. OCLV carbon Bontrager Aeolus Elite 35V wheels and a carbon seat post dampen vibrations while keeping the weight down.

The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It is ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 25 kph (28 mph in the US) with 80 km (50 miles) of range (in Eco mode). You can choose how much boost you get and when you get it with three assist modes.

IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger for longer. The confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.

Features:

  • Optional 160 Wh Range Extender fits neatly in your bottle cage and gives you an extra 44% more range.
  • Room for tyres of up to 50 mm wide (as measured).
  • Mounts on the frame and fork for front and rear racks, mudguards, and Adventure Frame and Triangle Bags.
  • Designed to fit extra hydration in addition to all your bags.
  • The Trek Central app seamlessly connects to your Checkpoint+ for real-time range calculations, activity tracking, and custom motor tuning, plus navigation and mapping features.
Technical Information
  • Frame
    500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

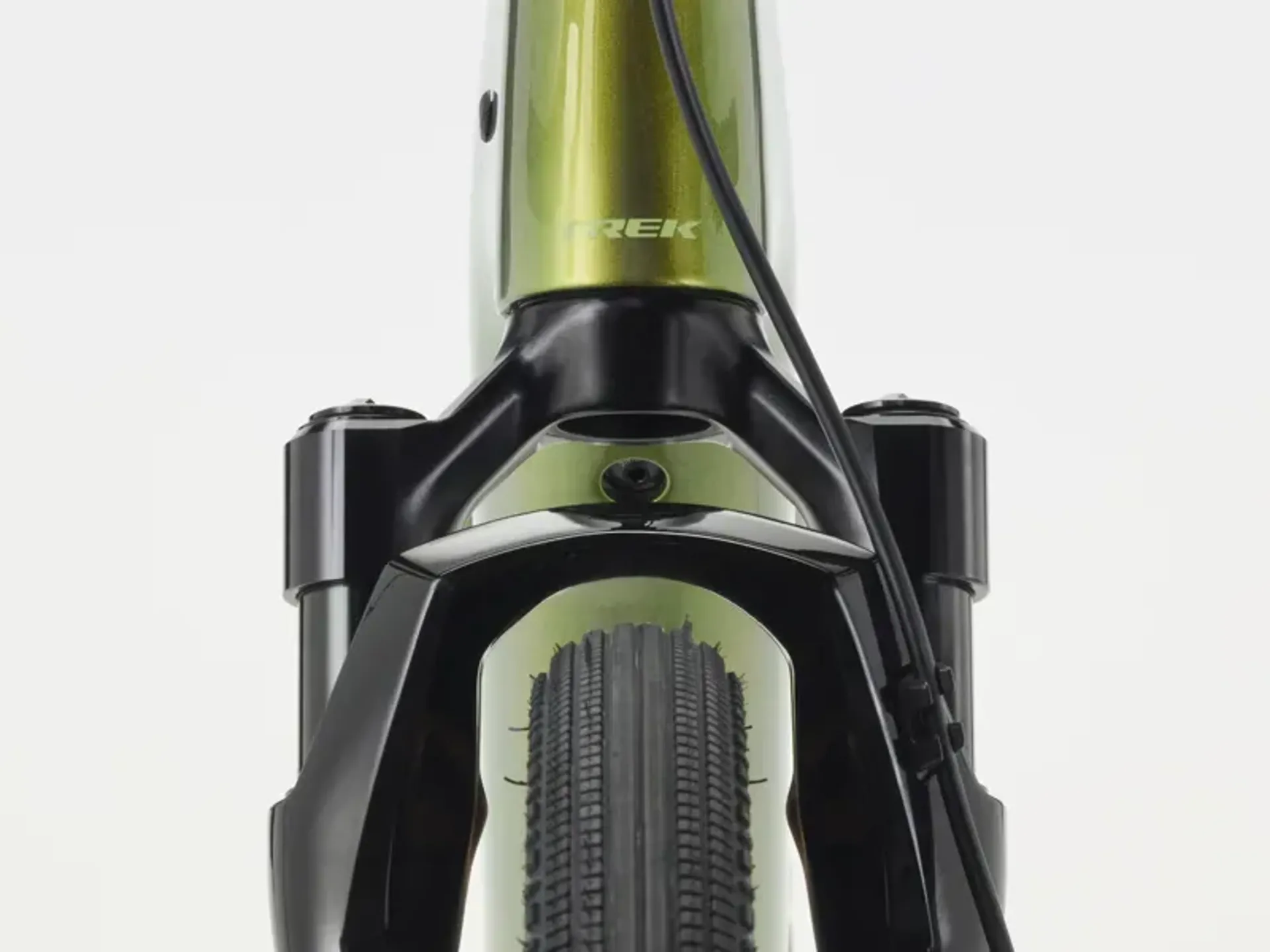

  • Fork
    RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel
  • Weight
    ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery
    TQ 360Wh
  • Charger
    TQ 4A charger

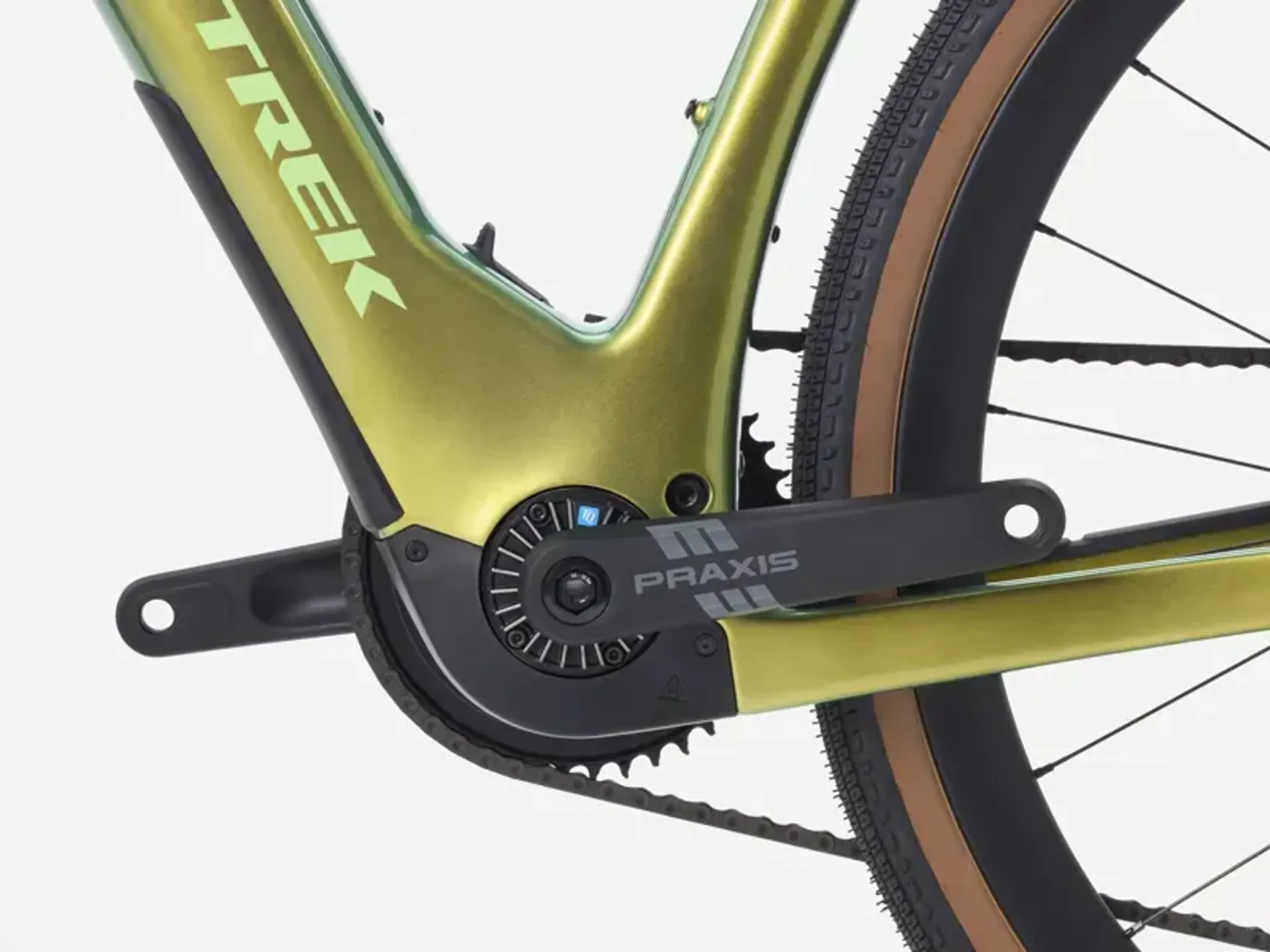

  • Motor
    TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power
  • E-bike classification
    Class 1
  • Shifter
    SRAM Force AXS E1
  • Rear derailleur
    SRAM X0 Eagle AXS, T-Type
  • Crank
    Size: S: Praxis Alloy, 165 mm length; Size: M, ML: Praxis Alloy, 170 mm length; Size: L, XL: Praxis Alloy, 172.5 mm length
  • Cassette
    SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
  • Chain
    SRAM X0 Eagle, T-Type, 12-speed
  • Max. chainring size
    1x: 44T
  • Wheel front
    Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
  • Wheel rear
    Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
  • Skewer rear
    Bontrager Switch chamfered thru axle, removable lever
  • Tyre
    Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
  • Rim strip
    Bontrager TLR
  • Max tyre size
    50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
  • Saddle
    Verse Short Elite, hollow magnesium rails, 145 mm width
  • Seatpost
    Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

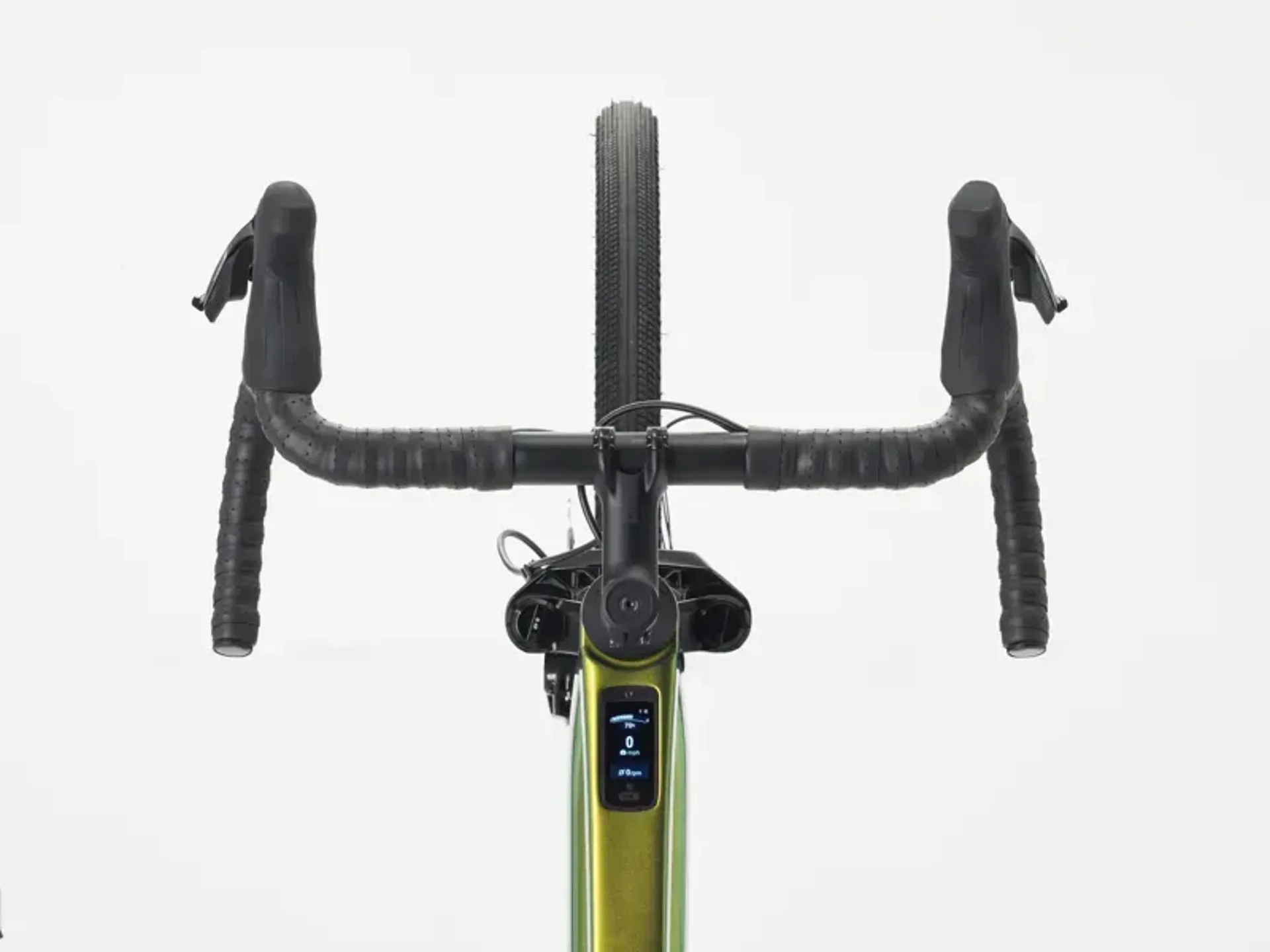

  • Handlebar
    Size: S: Bontrager Pro Gravel, 40 cm width; Size: M, ML: Bontrager Pro Gravel, 42 cm width; Size: L: Bontrager Pro Gravel, 44 cm width; Size: XL: Bontrager Pro Gravel, 46 cm width
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Stem
    Size: S, M: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80mm length; Size: ML, L: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90mm length; Size: XL: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100mm length
  • Brake rotor
    SRAM Paceline X, rounded, CentreLock, 160 mm
  • Rotor size
    Max brake rotor sizes: 180 mm front and rear
